When safety is the top priority
Use of optical 3D measurement technology in the field of medical technology
Optical 3D measurement technology is essential for the quality assurance of medical products, especially orthopaedic implants with complex shapes and sensitive surfaces. Non-contact measurements prevent surface damage, while roughness and wear measurements enable precise quality assessment.
The innovative technology of twip optical solution offers wear-free, automated measurements with traceable and reproducible results. Improve your quality control by using this advanced measurement technology.
Applications for medical technology
How twip optical solutions measurement systems can support you:
- High-resolution measurements of the
Measurements

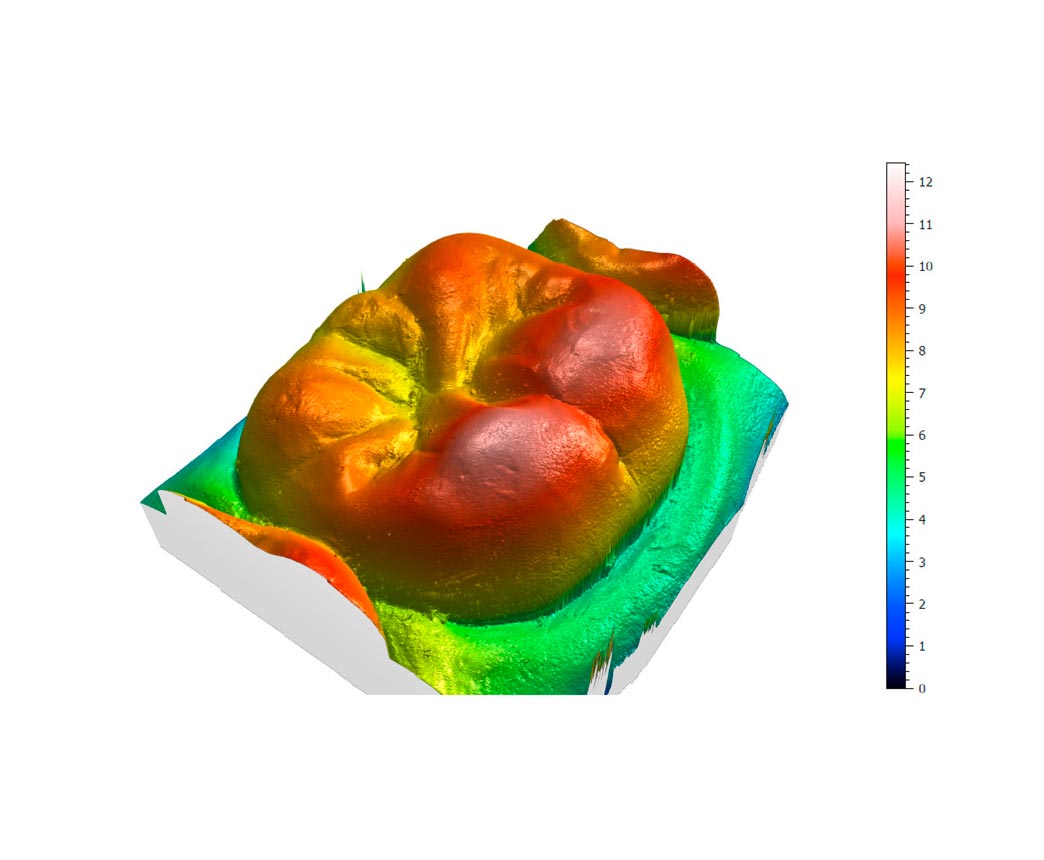

Tooth impression - micrometer-precise recording
With the CONSIGNO optical measuring device, entire teeth can be measured with micrometer precision in order to take an exact impression. The captured 3D measurement data can be used to:
- 3D views can be generated
- Generate point clouds and meshes
- CAD data synchronization

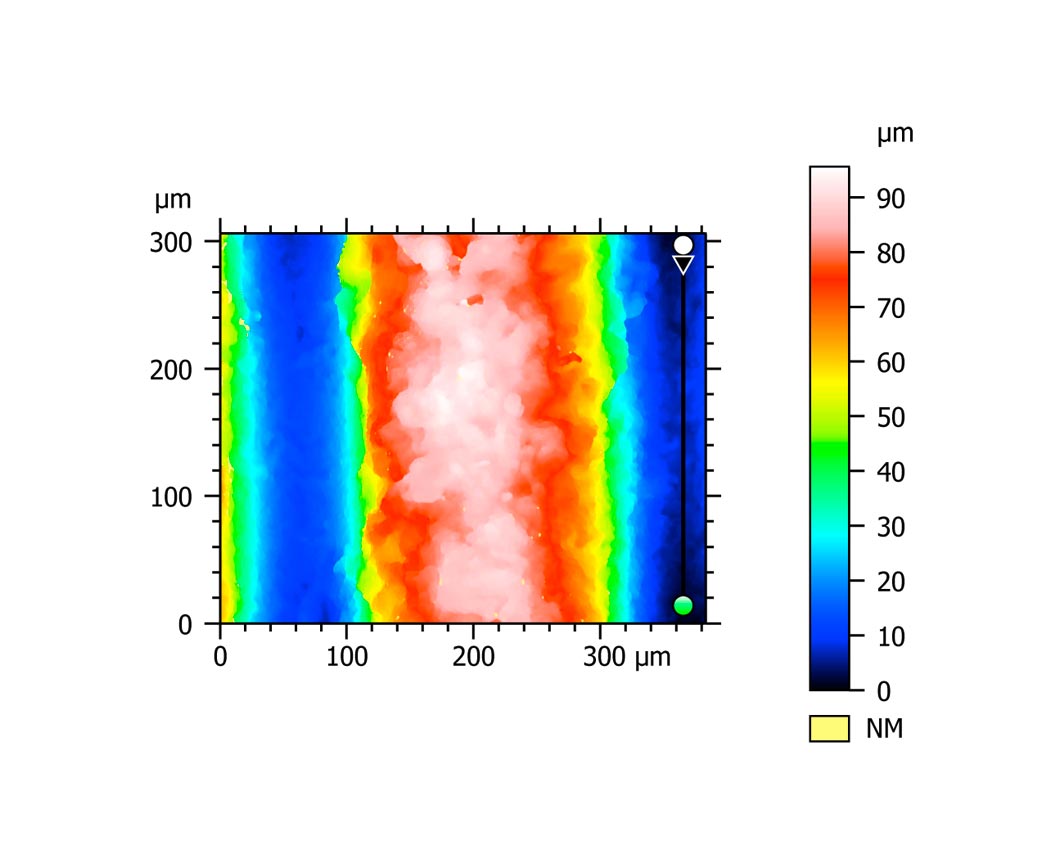

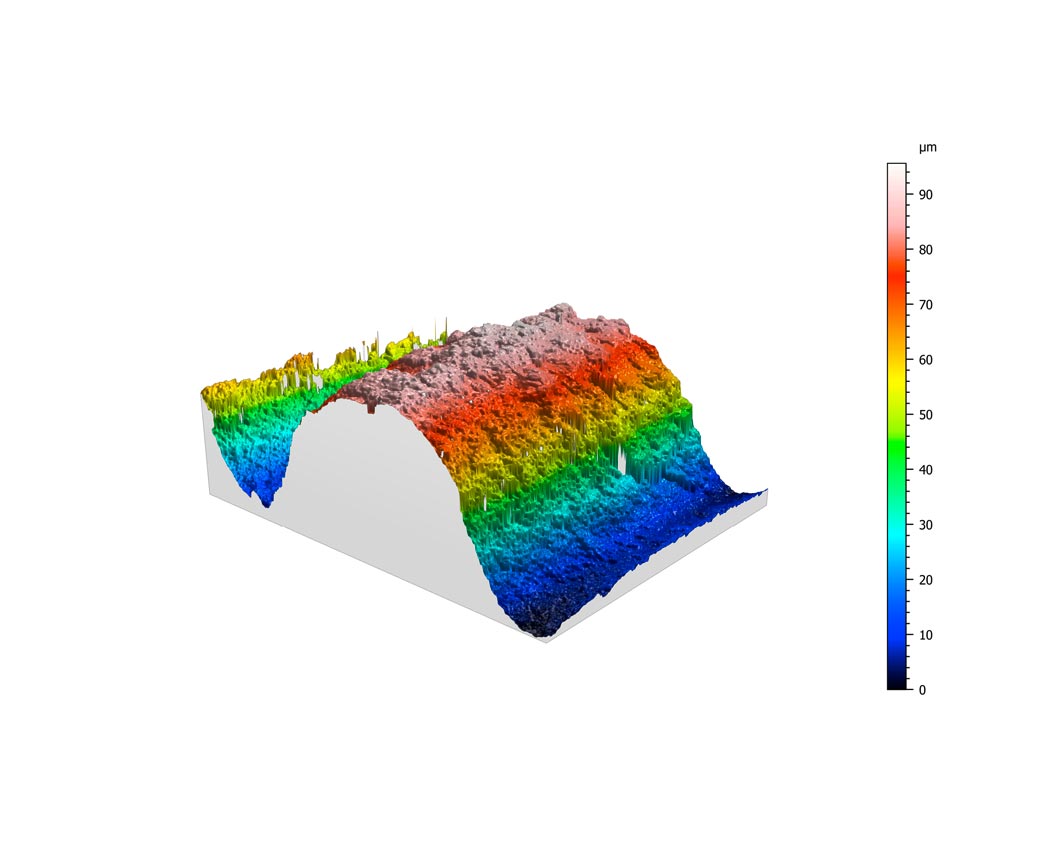

For safe and germ-free dental implants
For good compatibility of dental implants, it is necessary that the surfaces are germ-free, but still have sufficient friction so that the screwed implants hold firmly and securely. The surface properties can be reliably determined using the optical roughness measuring device.
| ISO 21920 – Roughness (S-L) | ||
| S-Filter (λs): Gauß, 2.5 µm | ||
| F: None | ||
| L-Filter (λs): Gauß, 0.25 mm | ||
| Measuring section: All λc (1) | ||
| Height parameters | ||
| Rq | 0.8821 µm | |
| Rsk | -0.1064 | |
| Rku | 3.119 | |
| Rz | 4.480 µm – average value: All λc (1) | |
| Ra | 0.6787 µm | |
Numerous other areas of application
Would you like more information on the areas of application and how our products can support your work? Our team offers customized advice and comprehensive support.
We are at your disposal. Please contact us!
